Cell Signaling Technology

Product Pathways - Apoptosis

N-Myc (D1V2A) Rabbit mAb #84406

No. Size Price
84406S 100 µl ( 10 western blots ) ¥3,250.00 现货查询 购买询价 防伪查询
84406 carrier free & custom formulation / quantityemail request
Applications Dilution Species-Reactivity Sensitivity MW (kDa) Isotype
W 1:1000 Human,Mouse, Endogenous 62 Rabbit IgG
IP 1:200
F 1:400
IF-IC 1:50
ChIP 1:50

Species cross-reactivity is determined by western blot.

Applications Key: W=Western Blotting, IP=Immunoprecipitation, F=Flow Cytometry, IF-IC=Immunofluorescence (Immunocytochemistry), ChIP=Chromatin IP,

Specificity / Sensitivity

N-Myc (D1V2A) Rabbit mAb recognizes endogenous levels of total N-Myc protein.

Source / Purification

Monoclonal antibody is produced by immunizing animals with a synthetic peptide corresponding to residues surrounding Pro335 of human N-Myc protein.

Flow Cytometry

Flow Cytometry

Flow cytometric analysis of HeLa cells (blue) and IMR32 cells (green) using N-Myc (D1V2A) Rabbit mAb. Anti-rabbit IgG (H+L), F(ab')2 Fragments (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.



Confocal immunofluorescent analysis of IMR-32 (positive, left) and HeLa (negative, right) cells using N-Myc (D1V2A) Rabbit mAb (green). Actin filaments have been labeled with DyLight™ 554 Phalloidin #13054 (red).

Western Blotting

Western Blotting

Western blot analysis of extracts from various cell lines using N-Myc (D1V2A) Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower).

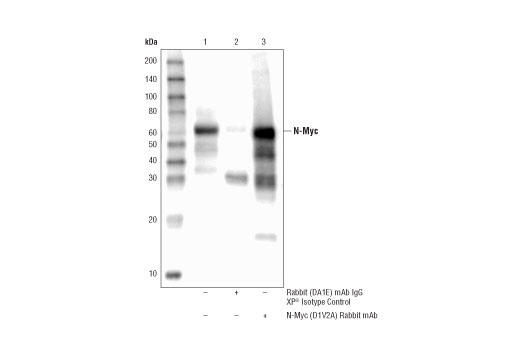

Immunoprecipitation of N-Myc from IMR-32 cell extracts. Lane 1 is 10% input, lane 2 is precipitated with Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is N-Myc (D1V2A) Rabbit mAb. Western blot was performed using N-Myc (D1V2A) Rabbit mAb. A confirmation specific secondary antibody was used to avoid cross reactivity with IgG.

Chromatin IP

Chromatin IP

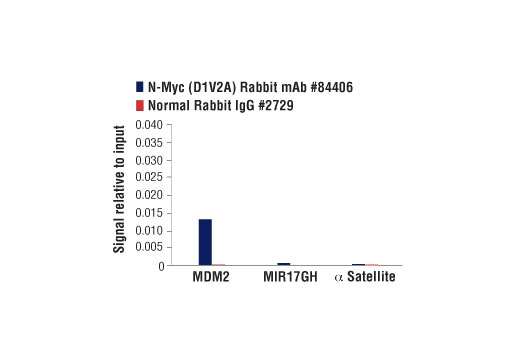

Chromatin immunoprecipitations were performed with cross-linked chromatin from 4 x 106 IMR-32 cells and either 10 µl of N-Myc (D1V2A) Rabbit mAb or 2 µl of Normal Rabbit IgG #2729 using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using human MIR17HG intron 1 primers, SimpleChIP® Human MDM2 Intron 2 Primers #90678, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.


Members of the Myc/Max/Mad network function as transcriptional regulators with roles in various aspects of cell behavior including proliferation, differentiation and apoptosis (1). These proteins share a common basic-helix-loop-helix leucine zipper (bHLH-ZIP) motif required for dimerization and DNA-binding. Max was originally discovered based on its ability to associate with c-Myc and found to be required for the ability of Myc to bind DNA and activate transcription (2). Subsequently, Max has been viewed as a central component of the transcriptional network, forming homodimers as well as heterodimers with other members of the Myc and Mad families (1). The association between Max and either Myc or Mad can have opposing effects on transcriptional regulation and cell behavior (1). The Mad family consists of four related proteins; Mad1, Mad2 (Mxi1), Mad3 and Mad4, and the more distantly related members of the bHLH-ZIP family, Mnt and Mga. Like Myc, the Mad proteins are tightly regulated with short half-lives. In general, Mad family members interfere with Myc-mediated processes such as proliferation, transformation and prevention of apoptosis by inhibiting transcription (3,4).

In humans the Myc family consists of 5 genes: c-Myc, N-Myc, L-Myc, R-Myc, and B-Myc. While c-Myc is expressed in many proliferating cells, N-Myc expression is very restricted, with highest levels in during embryonic development and then in the adult during B-cell development. These expression patterns and results from targeted deletion of N-Myc suggest that N-Myc plays an important role in tissue development and differentiation (5). In addition, amplification or overexpression of N-Myc has been found in human neuroblastomas and is associated with rapid progression and poor prognosis (6,7).

  1. Baudino, T.A. and Cleveland, J.L. (2001) Mol Cell Biol 21, 691-702.
  2. Blackwood, E.M. and Eisenman, R.N. (1991) Science 251, 1211-7.
  3. Henriksson, M. and Lüscher, B. (1996) Adv Cancer Res 68, 109-82.
  4. Grandori, C. et al. (2000) Annu Rev Cell Dev Biol 16, 653-99.
  5. Sawai, S. et al. (1993) Development 117, 1445-1455.
  6. Schwab, M. et al. (1984) Proc. Natl. Acad. Sci. USA 81, 4940-4944.
  7. Brodeur, G.M. et al. (1984) Science 224, 1121-1124.

Application References

Have you published research involving the use of our products? If so we'd love to hear about it. Please let us know!


Companion Products

For Research Use Only. Not For Use In Diagnostic Procedures.

DyLight is a trademark of Thermo Fisher Scientific, Inc. and its subsidiaries.

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

XP is a registered trademark of Cell Signaling Technology, Inc.

SimpleChIP is a registered trademark of Cell Signaling Technology, Inc.

Alexa Fluor is a registered trademark of Life Technologies Corporation.

Tween is a registered trademark of ICI Americas, Inc.

Cell Signaling Technology® is a trademark of Cell Signaling Technology, Inc.
